Optomel’s technology spans the range from 350nm to over 1100nm. A variety of reflective notch filters have been developed for customers’ specific needs. Some standard products are available (with a FWHM bandwidth from 30nm to 100nm) and are listed below:

Product ID Central Wavelength (nm)Optical Density (OD)
P450XXXXXX450nmOD2, OD3+
P532XXXXXX532nmOD2, OD3+
P1064XXXXX1064nmOD2

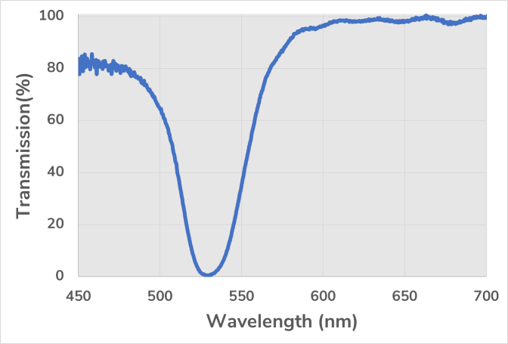

Technology example – 532nm reflective notch filter
